primeTOUCH flat

maximum precision
minimum latency
plug & play
high quality frontglass with anti reflective surface
able to run 24/7

primeTOUCH flat

Q: How much does the primeTOUCH cost?

The primeTOUCH is available in a variety of sizes and models. Please contact us to get your quote.

Q: Where and how can i purchase this product?

As a manufacturer, we only work with resellers. So, if you are not an end customer, you are welcome to buy from us. In some countries we have distributors who can support you locally. If you are an end customer, we would be happy to recommend partners in your area who can provide you with the best possible support. Please contact us .

Q: How will my goods be shipped (DE, EU, Asia, GB, USA, Canada, other)?

We work all over the world. We can either send your goods with known carriers or have them ready for collection. Of course, we provide the necessary export accompanying documents for non-EU countries.

Q: Where do I find the manual?

You can find the manual in the download area .

Q: Can I bring my own display so that only the touch technology is provided?

This has to be checked on a case-by-case basis and development costs are incurred. This means that a new one will often be cheaper.

Q: Is primeTOUCH suitable for multi-touch?

Yes, as standard, up to 32 touch points can be processed at the same time. Even more as a special solution.

Q: Are the devices and/or technology particularly certified?

The device has the specific needed German respectively EU certificates.

Q: Which technology is used for the touch recognition?

Infrared (IR) is used for the touch recogniton.

Q: Which technical and creative partners do we need for implementation?

The primeTOUCH is directly compatible with Windows 10/11. In order to have an interactive application, however, you need a content producer. If you need recommendations for this matter, feel free to contact us .

primeTOUCH flat revolutionises the world of IR touchscreens.
It works as precisely and robust as known from primeTOUCH series combined with a stylish, nearly flat front design. The PCAP similar look and its highly cost effectiveness make primeTOUCH flat an overall attractive interactive solution.

NEC M-Series displays team up perfectly with primeTOUCH solutions and work as a reliable and professional display.

Details

Trade show

Event

Digital Signage

Broadcast

Museum

Corporate

Key features

Maximum precision

Minimum latency

Compatibility

Variety of sizes

Touch points as needed

Detection

Product in detail

If you need further information, please check the FAQ or contact us.

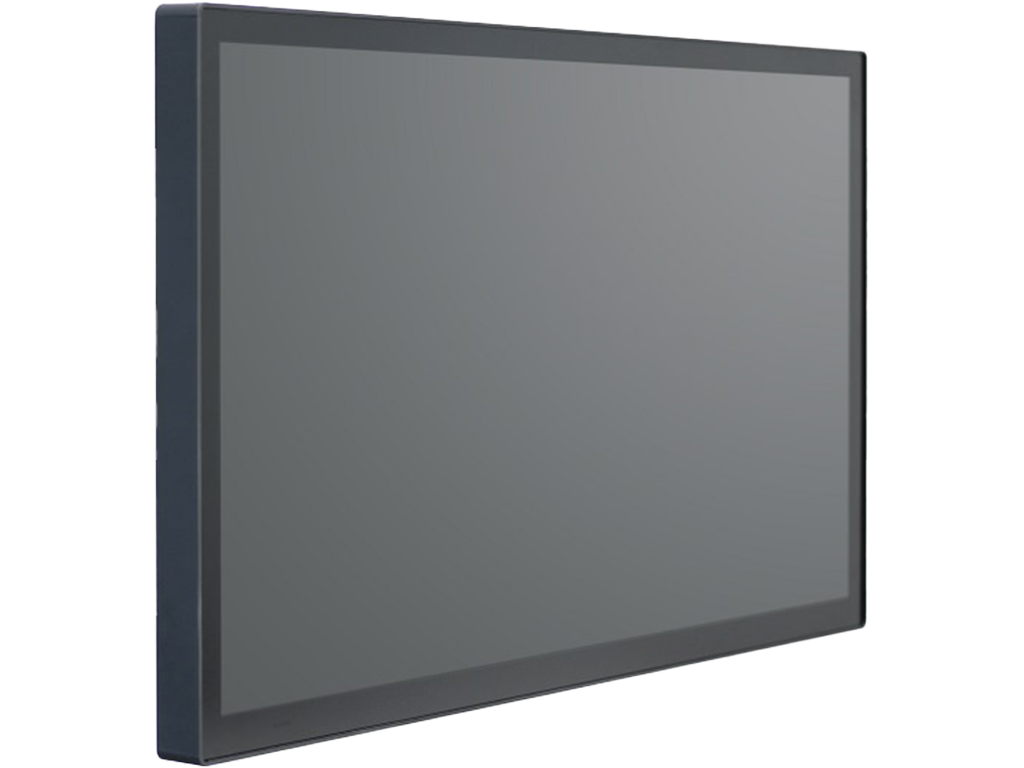

primeTOUCH flat

Specifications

Display
Available sizes [inch]	43" \| 55" \| 65" \| 75" \| 86" \| 98"
Display resolution	Ultra High Definition (UHD) 3.840 x 2.160 px
Basic Displays	NEC M431 \| NEC M551 \| NEC M651 \| NEC M751 \| NEC M861 \| NEC M981
Brightness	NEC M-Series 43" – 98": ca. 500 nit
Digital Video Inputs	43" – 65": 1 x DisplayPort‚ 2 x HDMI 75" – 98": 2 x DisplayPort‚ 2 x HDMI

Touch
Technology	flat IR Touch
Touch Inputs	32" – 65": 12 simultaneous touch points (more on request) 75" – 98": 32 simultaneous touch points (more on request) (up to 50 touch points on request)
Input Method	Finger‚ glove‚ pen etc.
Touch Fidelity	Less than 0.5 mm
Minimum detactable object	1.5 mm
Sample Rate	Up to 250 Hz
Front Glass	Anti Glare‚ super smooth (etched)‚ tempered safety glass
Communication	USB HID Digitizer (driver necessary in some cases)
Connection	USB A female connector (USB 2.0 Full Speed)
Native driver support	Windows 10/11‚ Mac OS X‚ Linux and Android on request
Touch data output	HID‚ native Windows Multitouch‚ TUIO

Installation / Operation
Operating temperature	0 to +35 °C
Display resolution	20 to 80 %
Orientation	Landscape‚ Portrait, Face-Up (at Fan-Speed=HIGH and Brightness=70%; contact us for further details)
Operating time	24/7

Warranty
24 months; excluding USB cable and connectors

Visual Details

Downloads

Manuals

Manual -- primeTouch flat

Datasheets

Datasheet -- primeTOUCH flat

Drivers

Why work with us

German engineering

20+ years of experience

Multitouch pioneers

Trustworthy B2B partner

Quick reaction time

Products on-stock

Operating worldwide

Interdisciplinary experts

Contact us

Your contact person

Teodora Neustädter

Director Sales

We speak

Deutsch
English
Español
Français
Italiano
عربيش
Русский
Românesc

Our top-selling products

primeTOUCH flat

primeTOUCH flat revolutionises the world of IR touchscreens. It works as precisely and robust as known from primeTOUCH series combined...

radarTOUCH

radarTOUCH was designed for contact-free multi touch applications which exceed common screen sizes.

Display Designstand

The new Designstand FSD-5001 is the ultimate installation and rental product for displays up to 86”. The splitable column enables...

TITAN

With the new TITAN display lift system, large displays and LED walls can be set up easily and safely.

EVO frame series

The newest frame generation is the EVOlution of the very well known earlier frame series. The system has been redesigned...

GhosT-OLED

GhosT-OLED offers the possibility for image presentation as well as the transparency to see objects that are placed behind.

FAQ

Do you have any additional questions? Don't hesitate to contact us.

General

How much does the primeTOUCH cost?

Where and how can i purchase this product?

How will my goods be shipped (DE, EU, Asia, GB, USA, Canada, other)?

Where do I find the manual?

Specific

Can I bring my own display so that only the touch technology is provided?

Is primeTOUCH suitable for multi-touch?

Are the devices and/or technology particularly certified?

Which technology is used for the touch recognition?

How is infrared touch different from capacitive touch technology?

The capacitive touch technology, also known as PCAP, is based on a transparent sensor that is located behind a glass panel. Touches of the glass pane are registered by a controller and converted into two-dimensional data that leads to the determination of the touch position. Infrared technology for short IR, is based on infrared diodes that communicate with each other above the display surface and create a network of connections. When the display surface is touched, these connections are interrupted, which leads to the determination of the touch position. Both touch technologies are very precise and fast. With PCAP you don't need an overlay, with IR you do. PCAP is ideal for bright rooms or those with strong light fluctuations, IR only in the IR Protect version. IR can cover very large areas, with PCAP the size is limited to approx. 100 ". Since the two technologies hardly differ in terms of performance, it is important to find out which is best suited for your project. We would be happy to discuss this with you down to the smallest detail. Please don't hesitate to contact us.

Which technical and creative partners do we need for implementation?

I'm looking for inspiration, which interactive solution can be implemented?

Operating

Can the primeTOUCH be operated 24/7?

Do I need a special power supply?

Is the primeTOUCH suitable for every exposure situation?

Is the device low-maintenance? What are typical maintenance cases?

Warranty

Is there an extended warranty?
